Material: Q235 low carbon steel tube and steel wire
Surface Treatment: electric galvanized, hot dipped galvanized.
Application:
1. secure construction sites and private property
2. residential housing sites
3. public events, sports, concerts, festivals, gatherings etc.
| Product Name | Chain link fence |
| Mesh height | 1.5-6m |
| Mesh length | 10-30m |
| Wire diameter | 2.5-5mm |
| Hole opening | 50x50mm, 55x55mm, 60x60mm, 70x70mm, 80x80mm, 100x100mm |
| Surface treatment | electric galvanized, hot dipped galvanized, galvanized with PVC coated |
| Post size & thickness | 42mm,48mm,60mm,80mm,100mm,thickness 1.2-3mm. |
| Rail size & thickness | 32mm,38mm,42mm, thickness 1-1.5mm |

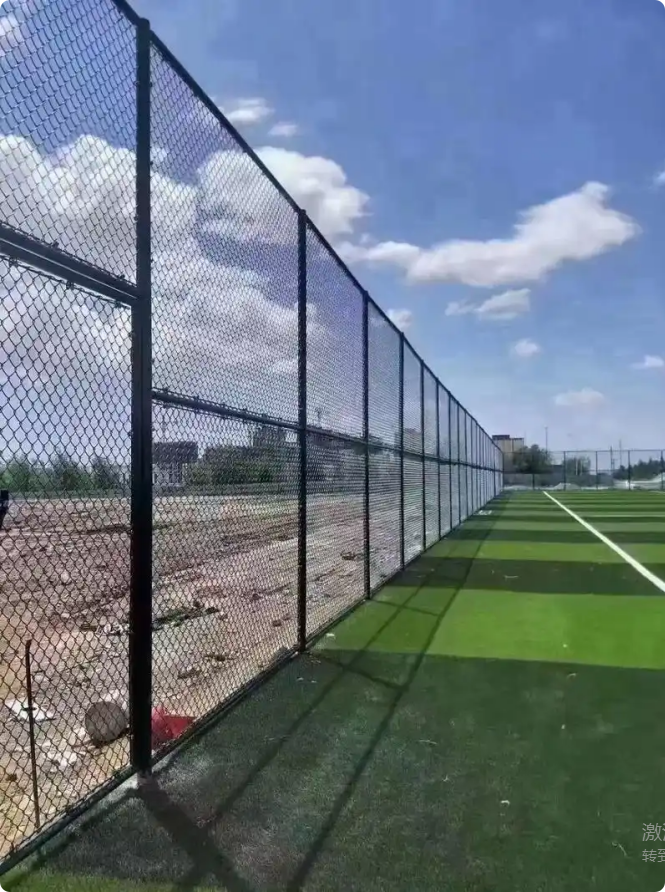

| Application | Residential buildings, airports, factories, gardens, farms, tennis courts, sports fields, etc |
| Note: Special requirements can be customized | |
Chain Link Temporary Fence Panel
Temporary Chain Link Fence /Construction Fence Panels Spec | |
Round Tube | 1¼”(32mm) 1⅜”(35mm) 1½”(38mm) 1⅗”(40mm) 1⅝”(42mm) 1⅞”(48mm) |
Thickness of Tube | 16GA/ 1.6mm thick or as customized size |
Chain mesh aperture | 2”x2/”(50mmx50mm),2¼”x2¼”(57mmx57mm),2⅜x2⅜(60mmx60mm),2½”x2½”(63mmx63mm) |
Height | 6ft,8ft |
Width | 8ft, 10ft, 12ft |
Panels Size | 6ftx8ft,6ftx10ft,6ftx12ft,8ftx12ft |
Diameter /Gauge | 10ga/3.0mm , 11ga/2.90mm, 11.5ga/2.75mm, 12ga /2.60mm 12.5ga/2.5mm |
Base Optional 1 | 36” length x 30” width x 8” Height /914mmx762mmx203mm |
Base Optional 2 | 36” length x 16” width x 8” Height /914mmx406mmx203mm |
Base Optional 3 | 30” length x 18” width x 8” Height /762mm x460mm x203mm |
