DOUBLE LEAF GATES AND WICKETS

Specifications of double leaf gates

Length ≤ 6 m

80x80/2.0 mm hollow section posts

60x40/1.5 mm hollow section frame

M16 adjustable hinges

Lock, handle, and strike plate or bolt latch

Frame infill as ordered

No offset arm on the gate leaf

Length > 6 m

80x80/3,0 mm hollow section posts

60x40/2,0 mm hollow section frame

M16 adjustable hinges

Lock, handle, and strike plate or bolt latch

Frame infill as ordered

Additional offset arm on the gate lea

Flat wire mesh panel gate

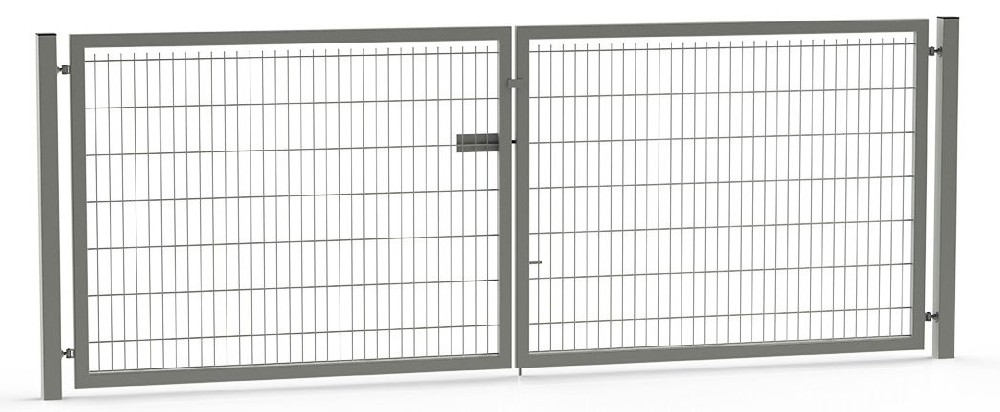

Profiled wire mesh panel gate

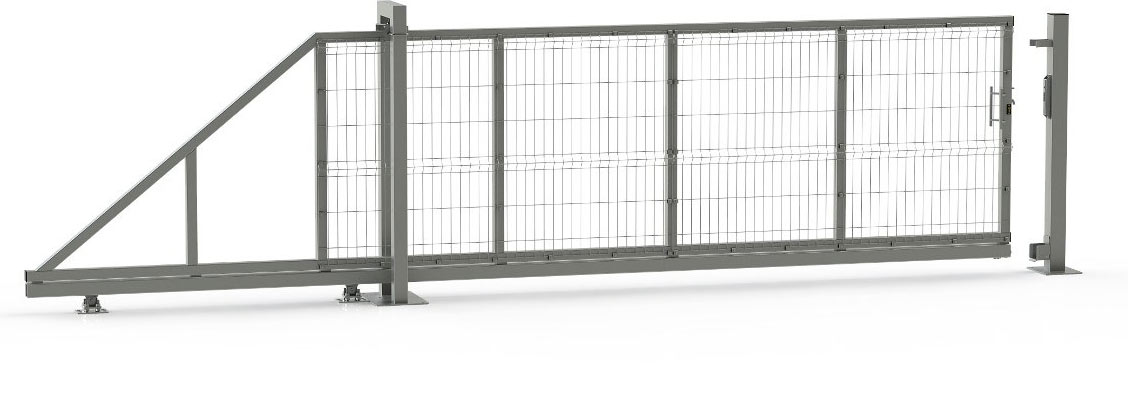

Hand-operated sliding gate with profiled wire mesh panel

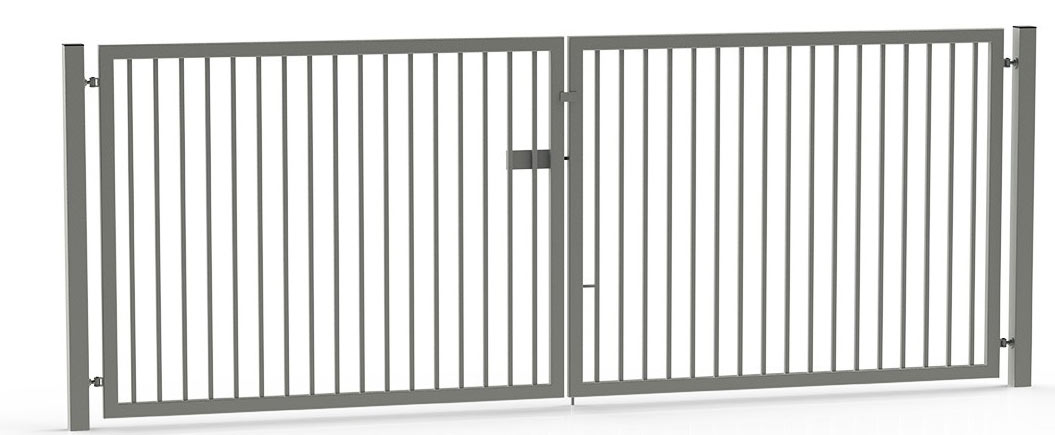

Gate with vertical infill bars
