Paladin Fence – Aesthetically Pleasing and Medium Security

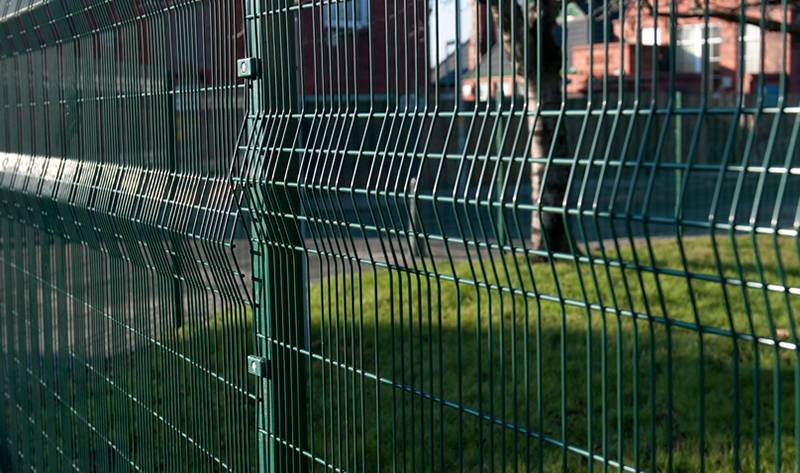

Paladin fencing panel is an extraordinarily form-unique type of fencing. It features unequal distance between vertical wires in a regular pattern and "V" beams at a distance. Besides paladin fencing, paladin gate and post for the paladin fencing system is supplied on your request.
It is the original paladin fence that mostly used for parks, schools and playgrounds for its aesthetically pleasing appearance, and used for factories, warehouses and utilities to prevent the entrance of intruders because its extra wires allow no secure footholds and handholds. Three types of paladin fencing panel the company supply: classic paladin fence, FX paladin fence and largest mesh paladin fence. The specifications of the three types are as follows.
Table-1: Paladin Mesh Fence system Specification
Fence Height
Panel Size
Beams
Inter clamps
Corners Clamps
900 mm
925 × 3025 mm
2
3
6
1200 mm
1240 × 3025 mm
2
4
8
1800 mm
1850 × 3025 mm
2
5
10
2000 mm
2000 × 3025 mm
3
6
12
2400 mm
2440 × 3025 mm
3
7
14
Post
60 × 60 × 2.00 mm and 60 × 80 × 2.5 mm
· Fence
· Materials: galvanized carbon steel wire, stainless steel wire, other material available.
· Width of panel: 3025 mm.
· Height of panel: 925 mm, 1240 mm, 1850 mm, 2000 mm, 2440 mm.
· "V" Beams No.: Panels up to 0.9 m/1.2 m/1.8 m height have 2 "V" beams, 2.0 m/2.4 m height have 3 "V" beams.
· Surface treatment: Primer or minimum zinc coat weight: 60 g/m2 or polyester coated 100 microns minimum. It provides additional protection and increases the potential life span.
· Colors: green (RAL 6005), black (RAL 9005). All RAL color is available.
· Accessories: posts, post base feet, barbed wire, slotted clamp bars, post cap, bracket, bolts, spacer, nuts, washer, clips, etc.
· Fence posts
· Material: high grade steel for maximum strength and rigidity.
· Posts for fences up to and including 3.0 m are manufactured from 60 × 60 SHS, and posts for heights in excess of 3.0 m are manufacture from 80 × 60 RHS.
· Post plate thickness: 2.5 mm or 3.0 mm, 4.0 mm, 5.0 mm.
· Post height: 1.5 m – 3.2 m.
· Colors: same as panel.
· Post cap: metal caps or plastic cap.

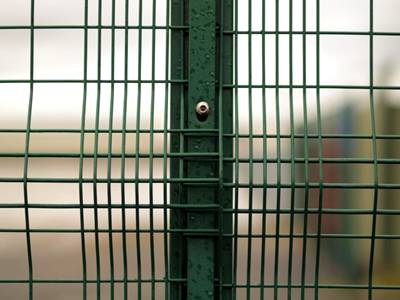

· Metal clips and clamps are hot dip galvanized then powder coating in green or black color.
Installation:
· Posts must be buried into earth, 0.5 m minimum to 1.2 m maximum.
· Classic paladin fence post centers at approximately 2.975 m.
· Paladin FX fence posts centers at 3.050 m
· Several panels could be installed on the top of each other to achieve a height in excess of 2.4 m for multi-lift erection, with a 100 mm overlap is required.
· Paladin fence is not typically equipped with barbed wire, razor wire and so on for extra security.
· A full installation guide is available upon request.
Features:
· Extraordinarily unique form: vertical wires regularly welded, together with "V" forms in a certain distance.
· Aesthetically pleasing appearance: The unique appearance makes itself a popular choice for recreational areas and playgrounds.
· Anti-climbing fence: The narrow rectangles mesh openings allows no secure handholds for intruders and therefore protect the aimed premises.
· Strength and rigidity: The heavy wire spanning the entire width in the middle of "V" forms added additional strength and rigidity.
· A long service life: The coating is applied over the entire panel and fence accessories and therefore guarantee a long life to serve.
· Fast installation: The panel shaped fence could be jointed together easily by joints and decrease the workload so that to be working efficient, furthermore it is convenient for secondary use.
· Visibility: The security fencing system protects against theft and vandalism in the meantime offered surveillance ability.
· Whether resistance: The galvanized carbon steel wire and PVC coating makes the fencing panel resistant to hard weather.
Applications:
Paladin fence is recommended for private estates, residential areas, industrial areas, parks, schools, playgrounds, public buildings, factories and warehouses, housing, farms, gardens, sports facilities, airports, utilities, public building, sports arenas, marinas.
