Razor Wire
Material: steel plate by one-time punching moulding or stainless steel plate by one-time punching moulding
Wire: hot dipped galvanized metal wire hot dipped galvanized steel wire or stainless steel wire
Core Wire Diameter: 2.7±0.1mm / 2.5±0.1mm
Razor Barbed sheet thickness: 0.45±0.05mm

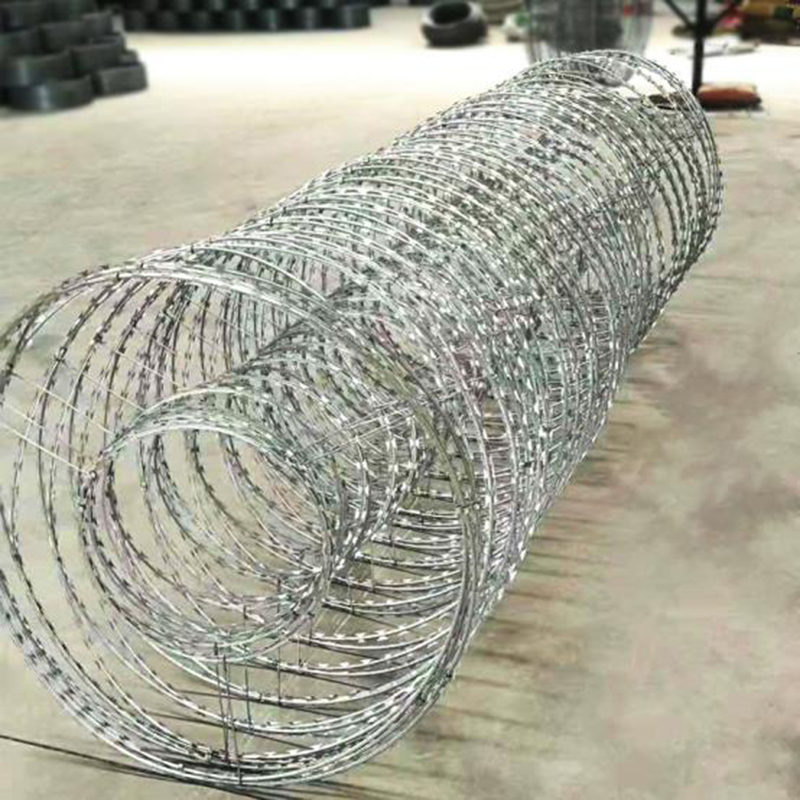

Razor Loop Diameter: 600mm Other Coil diameter for u choose: 300mm, 400mm,
450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm.450mm(3 clips),

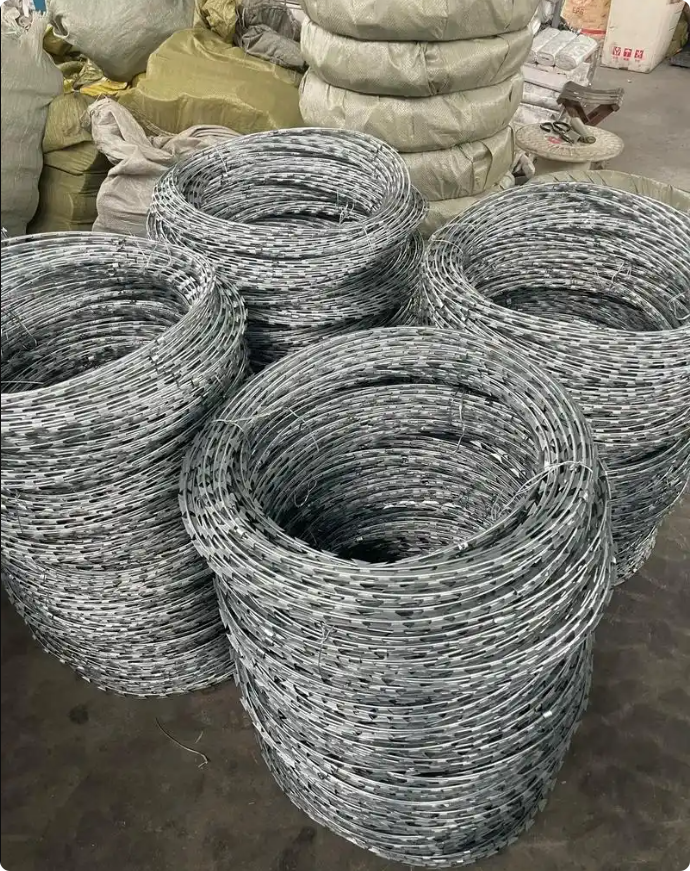

500mm(3 clips), 600mm(3 clips)900mm(5 clips) are the usually sizes Razor Barbed Wire per coil weight: 7kg, 10kg, 12kg, 14kg

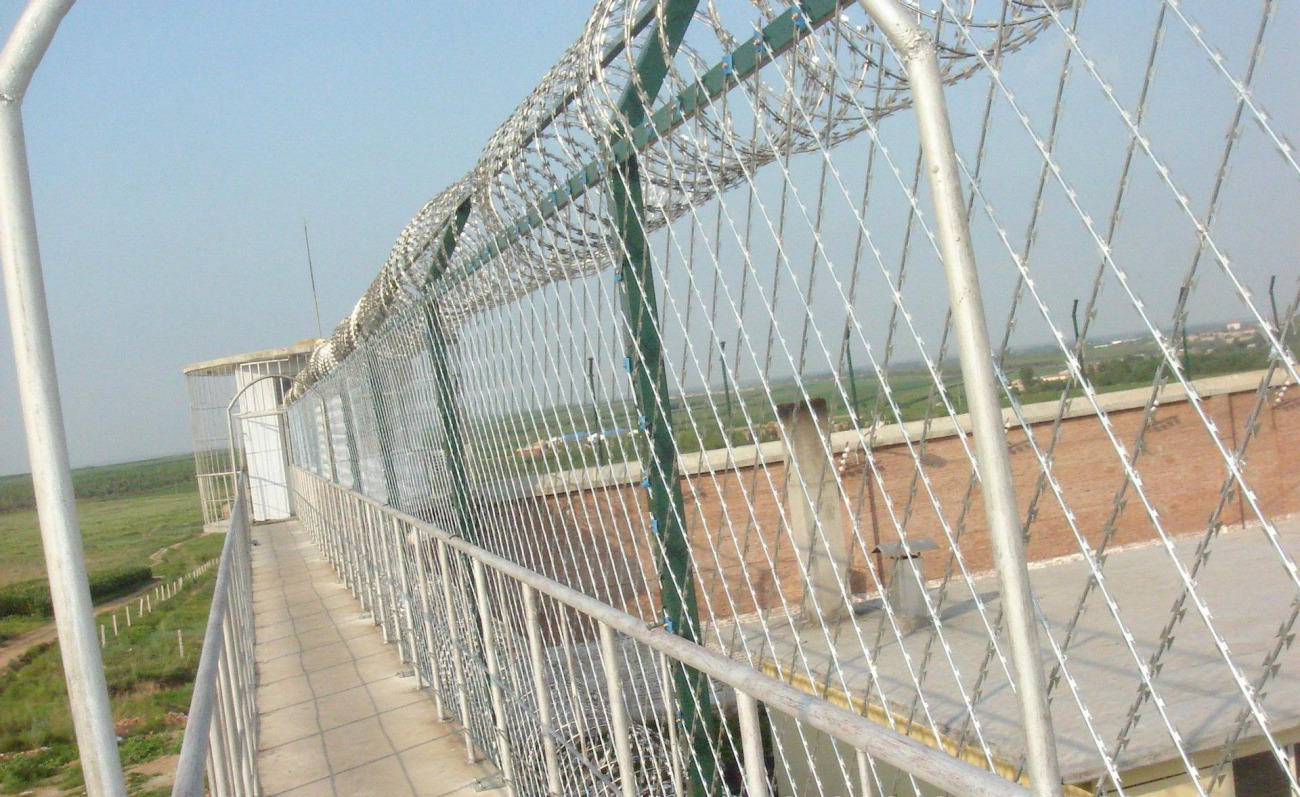

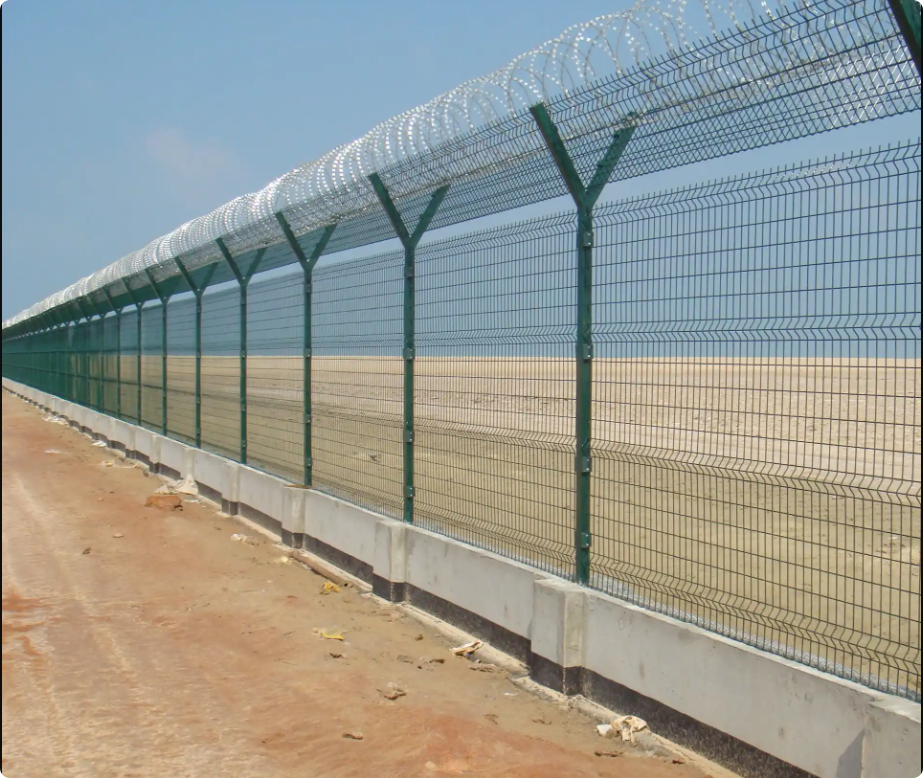

Usage: Used in many high security applications
.

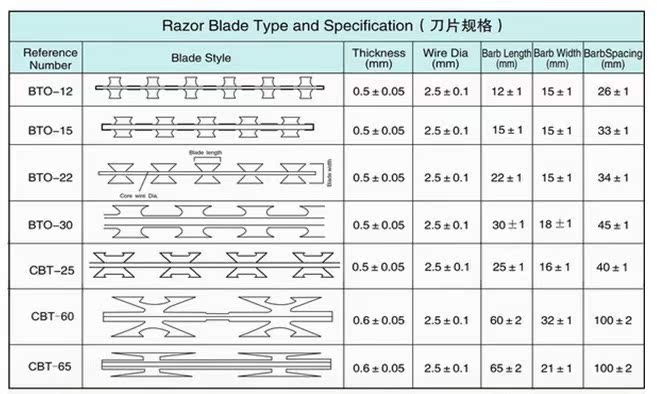

Model | Thickness | Wire Diameter | Length | Width | Spacing |
BTO-10 | 0.5±0.05mm | 2.5±0. 1mm | 12±1mm | 13mm | 26mm |
BTO-12 | 0.5±0.05mm | 2.5±0. 1mm | 12±1mm | 15mm | 26mm |
BTO-18 | 0.5±0.05mm | 2.5±0. 1mm | 18±1mm | 15mm | 33mm |
BTO-22 | 0.5±0.05mm | 2.5±0. 1mm | 22±1mm | 15mm | 34mm |
BTO-28 | 0.5±0.05mm | 2.5±0. 1mm | 28±1mm | 15mm | 34mm |
BTO-30 | 0.5±0.05mm | 2.5±0. 1mm | 30±1mm | 18mm | 34mm |
CBT-60 | 0.6±0.05mm | 2.5±0. 1mm | 60±1mm | 32mm | 96mm |
CBT-65 | 0.6±0.05mm | 2.5±0. 1mm | 65±1mm | 21mm | 100mm |
