358 anti climb fence, known as "prison mesh", is a high security anti-climbing and anti-cutting welded wire fence. Galvanized wire, commonly, is welded into fencing panels with extremely fine opening holes, which cannot be penetrated by hand fingers or cut by bolt cutters. Therefore it is highly recommended for high security needed area and private living field.
The name—358 high security fence comes from the size of panel mesh opening and wire diameter: 3'' × 0.5'' × 8 gauge, approximately equals to: 76.2 mm × 12.7 mm × 4 mm. As a welded wire fence, galvanized after welded and then PVC coated is recommended for a sturdy structure and corrosion resistance ability.

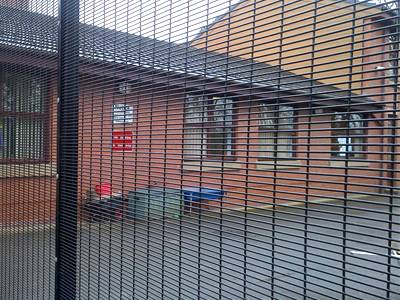

358ACF-01: Black PVC coated 358 anti-climb fence is more in harmony with residential and commercial places.

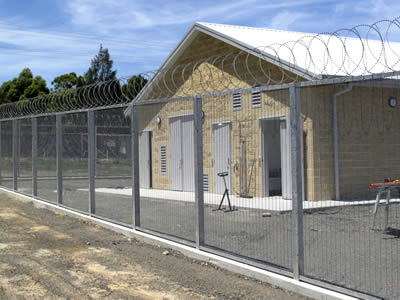

358ACF-02: Together with razor wire, 358 anti-climbing fence deters intruders and provides a high degree of security.
358 anti climb fence features:
·
358 anti climb fence application:

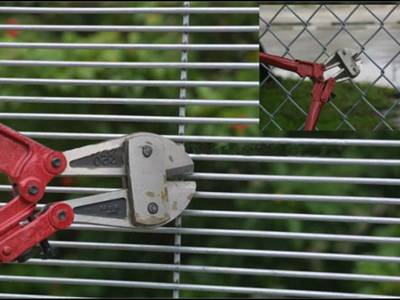

358ACF-03: Bolt cutter cannot even stretch into small hole of 358 fence, no mention of cutting.

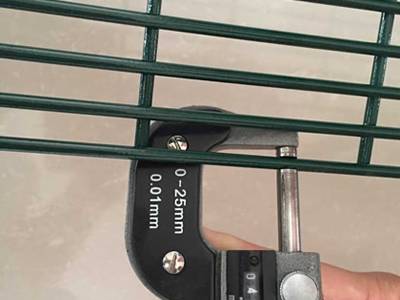

358ACF-04: The wire diameter and mesh opening follow strictly the standard size.

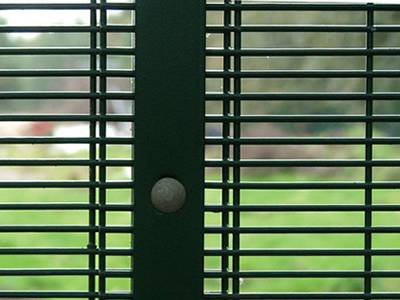

358ACF-05: Two panels were installed into a narrow post with 75 mm overlap for a solid structure.

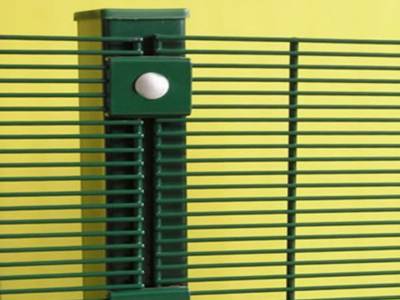

358ACF-06: Two panels were installed into a wide post with brackets without overlap but still firm.
Material: low carbon steel wire
Surface Treatment :hot dipped galvanized, galvanized and powder coated,pvc coated
Features:Anti-climb: More small openings makes it difficult to climb and penetrate.
Packaging：
Fence panel: plastic film + mFence post: every post pack with a plastic bag
(the cap is covered well on the post) + metal pallet
Accessory: small plastic bag +carton box
Specification:
358 mesh panel size
Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5").
Wire diameter: 4 mm horizontal wire and vertical Wire.
Weld strength: range 540–690 N/m2.
Fence height (m) | Panel size (height × width) (mm) | Fence post (height × size × thickness) (mm) | Clamp bar (height × width × thick) (mm) | Inter or corner clamp no (pcs) |
2.0 | 2007 × 2515 | 2700 × 60 × 60 × 2.5 | 2007 × 60 × 5.00 | 7 or 14 |
2.4 | 2400 × 2515 | 3100 × 60 × 60 × 2.5 | 2400 × 60 × 5.00 | 9 or 18 |
3.0 | 2997 × 2515 | 3800 × 80 × 80 × 2.5 | 2997 × 80 × 6.00 | 11 or 22 |
3.3 | 3302 × 2515 | 4200 × 80 × 80 × 2.5 | 3302 × 80 × 6.00 | 12 or 24 |
3.6 | 3607 × 2515 | 4500 × 100 × 100 × 3.0 | 3607 × 100 × 7.00 | 13 or 26 |
4.2 | 4204 × 2515 | 5200 × 100 × 100 × 4.0 | 4204 × 100 × 8.00 | 15 or 30 |
4.5 | 4496 × 2515 | 5500 × 100 × 100 × 5.0 | 4496 × 100 × 8.00 | 16 or 32 |
5.2 | 5207 × 2515 | 6200 × 120 × 120 × 5.0 | 5207 × 100 × 8.00 | 18 or 36 |
