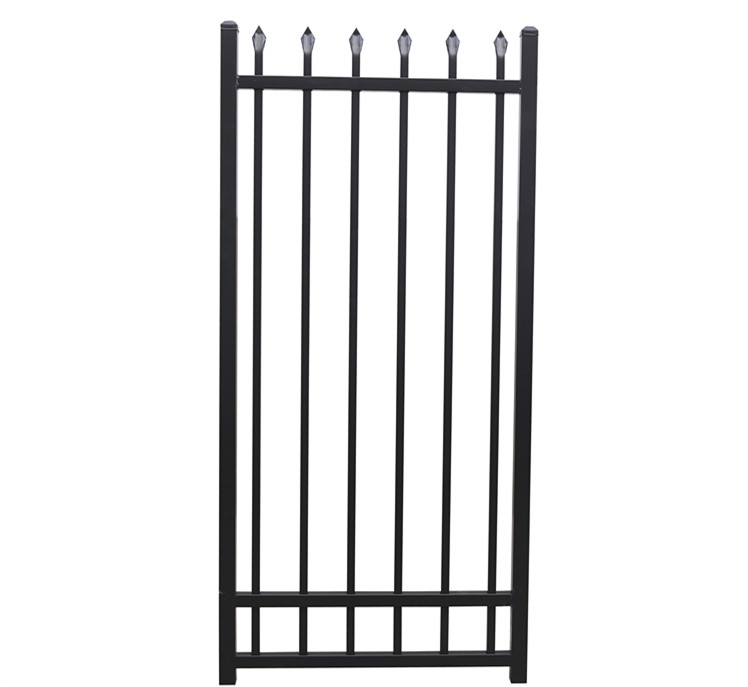

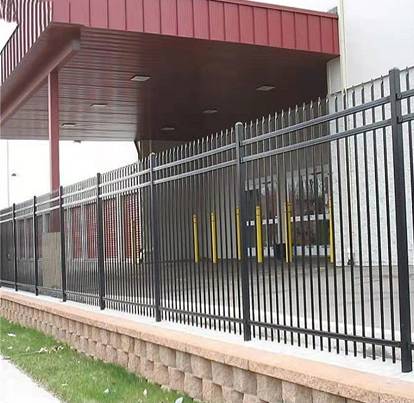

Security Fencing
Adopted high quality security fencing supplies.Top vertical tube pressed to spear by heavy duty punch.Horizontal rail is punched holes which can insert vertical rail.Combine strongly by our exquisite clamp.Other way is vertical tube welded to horizontal bar directly.
Security fencing supplies
Width of panel: 2400mm
Horizontal Rails:40*40mm
Vertical Bar:25x25mm
Post system:65mm
Steel quadrate post: 60x60mm,65x65mm
Installation manner
The post popular buried under the ground 500-900mm and pouring concrete when installation them.
Welded flange base under the post, and use setscrews to install on the harded ground.
Surface treatment
Fence can be electro galvanized or hot dipped galvanized and after several clear procedure. In that case can got strongly resist the corrosive and ultraviolet radiation. Double coating layer high quality anti corrupt. The longevity will be more than 12 years long.
Colour range
Polyester powder coated: Satin Black
Popular style fence in market
Width(mm) | Height(mm) | Post(mm) | No.of Horizontal rail(pcs) | Vertical Bar(mm) |
2400 | 1500 | 60*60*2100 | 2 | 25 mm |
65*65*2100 | ||||
2400 | 1800 | 60*60*2400 | 2 | 25 mm |
65*65*2400 | ||||
2400 | 2100 | 60*60*2700 | 2 | 25 mm |
65*65*2700 |
