Curvy galvanized welded wire mesh fence

time:2024-12-09 15:51:11hit:89

Curvy galvanized welded wire mesh fence

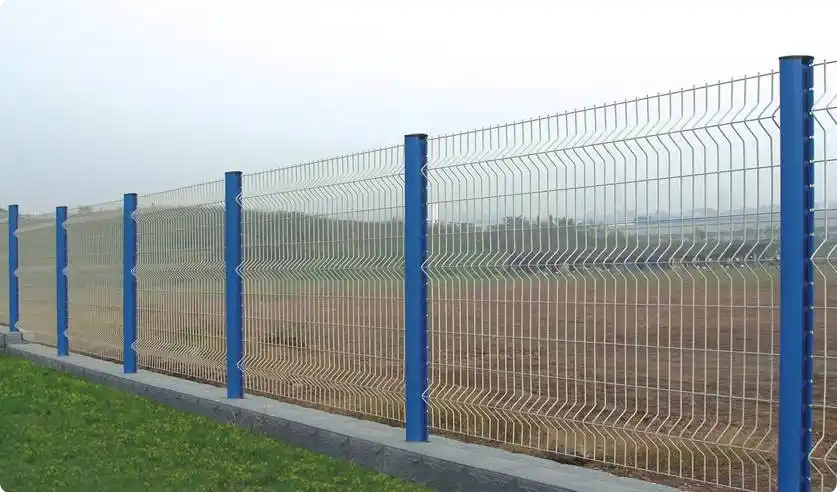

Triangle Bend Fence also known as 3D fence, is a special design for fencing and security protection. Compared with traditional two-dimensional fences, 3D fences achieve higher safety and protection through structural and design innovations.The 3D fence uses a three-dimensional design, with multiple levels and different heights of protection structures. It usually consists of a vertical metal pole or post and a transverse connecting rod. These connecting rods can form a mesh structure,forming a dense grid to prevent people or animals from crossing.

Material: Q235 low carbon steel wire

Usage: Widely usd in playground, sport court, parking lot, airport, etc.

Surface treatment: pvc coated,powder coated

Fittings: The panels and posts are jointed together with bolts or rivets.







Fence Post







Dimensions of Type

Square post/Rectangle post/Peach post/Round post •60x60mm and 50x50mm SHS steel Post

•40x60mm RHS steel post

•50x70 and 70x100 Peach shape post   •48mm and 60mm Round section post



Fence Accessories

Clips/Clamps

Metal Clips and Plastic Clips

Rain hat or caps for posts

Metal caps or plastic caps

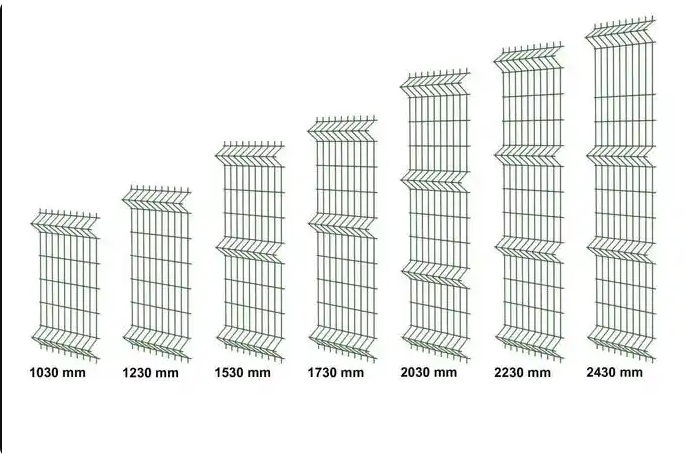

Height x Width mm

Mesh Hole mm

Wire Diameter mm

Wire Diameter mm

Wire Diameter mm

Post Height mm

600X2500

50x200

8x2 + 6

6x2 + 5

6x2 + 4

1100

800x2500

50x200

8x2 + 6

6x2 + 5

6x2 + 4

1300

1000x2500

50x200

8x2 + 6

6x2 + 5

6x2 + 4

1500

1200x2500

50x200

8x2 + 6

6x2 + 5

6x2 + 4

1700

1400x2500

50x200

8x2 + 6

6x2 + 5

6x2 + 4

1900

1600x2500

50x200

8x2 + 6

6x2 + 5

6x2 + 4

2100

1800x2500

50x200

8x2 + 6

6x2 + 5

6x2 + 4

2400

2000x2500

50x200

8x2 + 6

6x2 + 5

6x2 + 4

2600

2200x2500

50x200

8x2 + 6

6x2 + 5

6x2 + 4

2800

2400x2500

50x200

8x2 + 6

6x2 + 5

6x2 + 4

3000
