galvanized/plastic coated welded wire mesh

time:2024-12-09 17:38:07hit:95

galvanized welded wire mesh plastic coated welded wire mesh

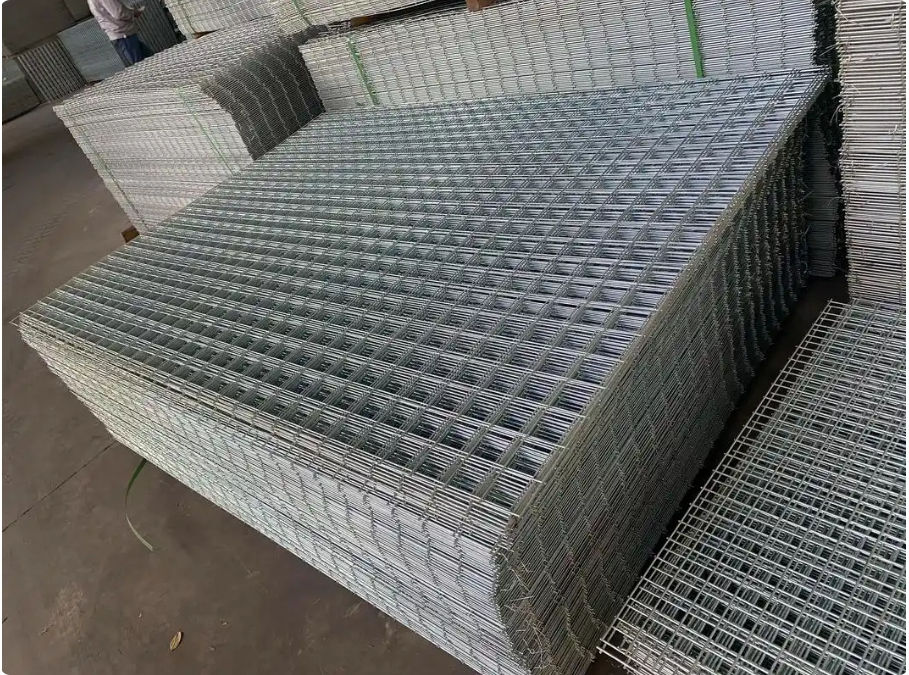

Welded wire mesh can come as coils /rolls or flat panels and sheets. It can be constructed from low carbon and stainless steel.
Surface treatment can be electro galvanized an hot dipped galvanized, also can be PVC coated or Powder coating.
Welded wire mesh is quick and simple to install and is not easily displaced by workers laying concrete. The ease of use can reduce completion time and help projects remain on budget. Faster construction time also minimizes the exposure of building components to the elements, resulting in higher-quality work.

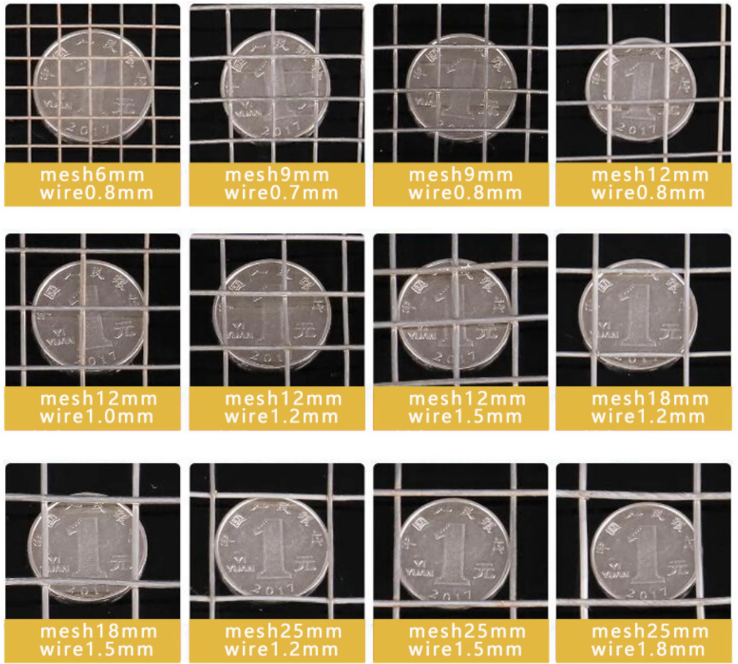

The Specification of Welded Wire Mesh

Specification list of high quality pvc welded wire mesh

Opening

Wire Diameter(BWG)

In Inch

In Meric Unit (mm)

1/4"×1/4"

6.35mm×6.35mm

22,23,24

3/8"×3/8"

9.5mm×9.5mm

19,20,21,22

1/2"×1/2"

12.7mm×12.7mm

16,17,18,19,20,21,22,23

5/8"×5/8"

16mm×16mm

18,19,20,21

3/4"×3/4"

20mm×20mm

16,17,18,19,20,21

1"×1/2"

25.4mm×12.7mm

16,17,18,19,20,21

1"×1/2"

25.4mm×12.7mm

14,15,16,17,18,19

1"×2"

25.4mm×50.8mm

14,15,16

2"×2"

50.8mm×50.8mm

12,13,14,15,16

Technical Note :
1.Standard Roll Length : 30m ; Width: 0.5m-0.8m
2.Special Size available at request
3.Package : in waterproofed paper in roll, custom Packing available request




APPLIANCE

Welded Wire Mesh Applications and usage:

1. Fences and gates

2. Architectural uses

3. Architectural Wire Mesh for Green Building Design

4. Infill panels for railings and divider walls

5. Animal control cages

6. Screens for doors and windows

7. Machine guards

8. Shelving and partitions

9. Behind-the-scenes use in plumbing, walls and ceilings

10. Gardens to keep bugs away from their plants and vegetables
